P0110 Toyota Code - Intake Air Temperature Circuit Malfunction

Quick Answer

The P0110 code for Toyota vehicles indicates a malfunction in the Intake Air Temperature (IAT) circuit. Common causes include Faulty Intake Air Temperature sensor, Wiring or connector issues in the IAT circuit, Intake Air Temperature sensor positioned too close to heat source. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.

What it means
P0110 Toyota indicates Intake Air Temperature Circuit Malfunction.
Common causes
Common causes include Faulty Intake Air Temperature sensor, Wiring or connector issues in the IAT circuit, Intake Air Temperature sensor positioned too close to heat source.
Severity
High - diagnose this code as soon as possible.
Can I drive?
Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
What is this?
Table of contents Created and updated by William Orellana on Sep 05, 2024
💬 Need more help? Ask Auto Expert for instant answers — it's free!
AutoCodes App

Fix Your Car Smarter

Try the New AutoCodes App!

Get complete OBDII diagnostics, repair solutions, and cost estimates, plus AI chat support on demand.

AutoCodes App on Google Play

Code P0110 Toyota Description

The P0110 code for Toyota vehicles indicates a malfunction in the Intake Air Temperature (IAT) circuit. The Intake Air Temperature sensor is responsible for monitoring the temperature of the air entering the engine. This information is crucial for the engine control module to calculate the air-fuel mixture and ignition timing. When the sensor detects an issue or sends incorrect data, it can lead to poor engine performance and fuel efficiency.

OBDII Code P0110 Toyota - Intake Air Temperature Circuit Malfunction
P0110 Toyota Code - Intake Air Temperature Circuit Malfunction

Common Causes of P0110 Toyota

  1. Faulty Intake Air Temperature sensor
  2. Wiring or connector issues in the IAT circuit
  3. Intake Air Temperature sensor positioned too close to heat source
  4. Engine coolant temperature sensor malfunction
  5. Engine control module (ECM) failure

Symptoms of P0110 Toyota

  1. Engine stalling or rough idling
  2. Decreased fuel efficiency
  3. Engine misfires
  4. Check Engine Light illuminated
  5. Reduced engine power

How to Fix P0110 Toyota

  1. Begin by diagnosing the code using a scan tool to confirm the issue.
  2. Inspect the wiring and connectors in the IAT circuit for any damage or corrosion.
  3. Test the Intake Air Temperature sensor using a multimeter to check for proper resistance values.
  4. Replace the faulty Intake Air Temperature sensor if necessary.
  5. Clear the code and perform a test drive to ensure the issue has been resolved.

Cost to Fix P0110 Toyota

The typical repair costs for a P0110 code can vary depending on the specific cause of the issue. In general, replacing the Intake Air Temperature sensor can cost between $50 to $150 for the part, with additional labor costs ranging from $80 to $150 per hour. Overall, the total repair cost can range from $150 to $300. It's important to note that prices may vary based on location and the specific make and model of the vehicle.

When is the Code Detected?

An excessively low or high voltage from the sensor is sent to ECM.

Need more information about the P0110 Toyota code?

Need more information on how to fix the P0110 Toyota code? Get Access to Factory Service Manuals

Need Help with the Code?

Get the P0110 Toyota code diagnosed by a professional: Find a repair shop in your area

Information for Specific Toyota Models

About the author: William Orellana is a Master Mechanic and Mechanical Engineer with over 30 years of experience diagnosing and repairing vehicles. Learn more about his background.

Frequently Asked Questions about P0110 Toyota Code

1. What are the common symptoms of OBDII code P0110 in a Toyota?

- Common symptoms include poor engine performance, rough idling, stalling, and a decrease in fuel efficiency.

2. What causes the P0110 code to trigger in a Toyota?

- The P0110 code is typically triggered by a malfunction in the intake air temperature (IAT) sensor or its circuitry.

3. How can I diagnose the P0110 code in my Toyota?

- You can use an OBDII scanner to read the code and visually inspect the IAT sensor and its wiring for any signs of damage or corrosion.

4. What are some repair tips for fixing the P0110 code in a Toyota?

- Repairing the P0110 code may involve replacing the faulty IAT sensor, repairing damaged wiring, or cleaning the sensor connector.

5. Can a dirty air filter cause the P0110 code to appear in a Toyota?

- Yes, a dirty air filter can affect the IAT sensor readings and potentially trigger the P0110 code.

6. Is it safe to continue driving my Toyota with the P0110 code present?

- It is not recommended to drive your Toyota with the P0110 code present, as it can lead to further engine issues and decreased performance.

7. How much does it typically cost to repair the P0110 code in a Toyota?

- The cost of repairing the P0110 code in a Toyota can vary depending on the exact cause of the issue and whether you perform the repairs yourself or take it to a mechanic.

8. Will resetting the OBDII code clear the P0110 code in a Toyota?

- Resetting the OBDII code may temporarily clear the P0110 code, but it will likely reappear if the underlying issue is not addressed.

9. Can extreme weather conditions affect the IAT sensor and trigger the P0110 code in a Toyota?

- Yes, extreme temperatures can affect the IAT sensor readings and potentially lead to the triggering of the P0110 code.

10. How important is it to fix the P0110 code promptly in a Toyota?

- It is important to address the P0110 code promptly to prevent further damage to your Toyota's engine and ensure optimal performance and fuel efficiency.

Discuss the causes and fixes for P0110 Toyota OBDII Code

Submit a New Comment

  • yes a good explaination but when I put a new sensor in it still showed the same code...now what?

    Reply to Comment

  • Next step is to check the sensor connector and the wires from the sensor to the the Engine Control Module (ECM)

    Reply to Comment

  • does that sensor make the engine miss randomly? Checked the wires will check them again. thank you.

    Reply to Comment

  • Although it's possible, it's very unlikely. I haven't seen a bad intake air temperature sensor causing any misfiring or any other engine performance problems.

    Reply to Comment

  • engine light on 97 toyota tacoma 2.4.shows code p0110 starts up runs then shuts off but starts rite back up does that a few times then it will idle

    Reply to Comment

  • Looks like you have a problem with the Intake Air Temperature (IAT) sensor. You should start by replacing the sensor.

    Reply to Comment

  • i also put a new maf sensor on my toyota tacoma.but it was an after market one.would that make a diffrence?

    Reply to Comment

  • this car is remove black smoke I hv p0340 nd p0110 toyota camry 1996 model what can I do to fix the problem

    Reply to Comment

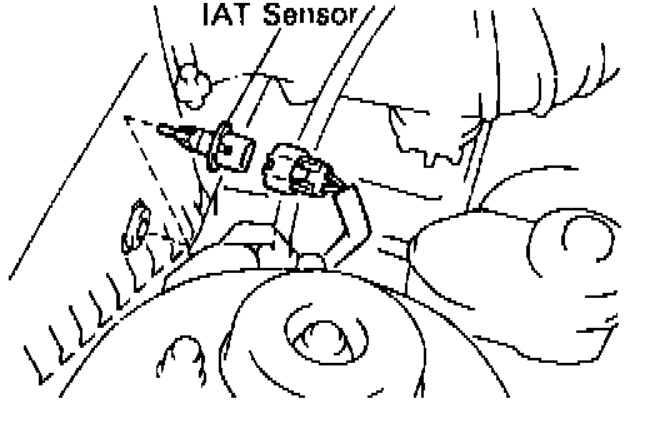

  • If you have the P0110, then you have to replace the Intake Air Temperature Sensor. The sensor is mounted on the air filter box.


    Click here to enlarge image

    Reply to Comment
