P1140 2002 Nissan Sentra Code - Intake Valve Timing Control Performance Bank 1

Quick Answer

The diagnostic trouble code (DTC) P1140 for a 2002 Nissan Sentra relates to the Intake Valve Timing Control Performance on Bank 1. Common causes include Faulty Intake Valve Timing Control Solenoid, Wiring or connector issues in the intake valve timing control system, Low engine oil level or dirty oil. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.

What it means
P1140 2002 Nissan Sentra indicates Intake Valve Timing Control Performance Bank 1.
Common causes
Common causes include Faulty Intake Valve Timing Control Solenoid, Wiring or connector issues in the intake valve timing control system, Low engine oil level or dirty oil.
Severity
High - diagnose this code as soon as possible.
Can I drive?
Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
What is this?
Table of contents Created and updated by William Orellana on Sep 07, 2024
💬 Need more help? Ask Auto Expert for instant answers — it's free!
AutoCodes App

Fix Your Car Smarter

Try the New AutoCodes App!

Get complete OBDII diagnostics, repair solutions, and cost estimates, plus AI chat support on demand.

AutoCodes App on Google Play

Code P1140 2002 Nissan Sentra Description

The diagnostic trouble code (DTC) P1140 for a 2002 Nissan Sentra relates to the Intake Valve Timing Control Performance on Bank 1. This code indicates that there is an issue with the intake valve timing control system, which can have significant implications for the vehicle's performance and efficiency.

OBDII Code P1140 2002 Nissan Sentra - Intake Valve Timing Control Performance Bank 1
P1140 2002 Nissan Sentra Code - Intake Valve Timing Control Performance Bank 1

Common Causes of P1140 2002 Nissan Sentra

  1. Faulty Intake Valve Timing Control Solenoid
  2. Wiring or connector issues in the intake valve timing control system
  3. Low engine oil level or dirty oil
  4. Timing chain or belt issues
  5. Engine control module (ECM) malfunction

Symptoms of P1140 2002 Nissan Sentra

  1. Decreased engine performance
  2. Rough idling or stalling
  3. Poor fuel economy
  4. Illuminated check engine light
  5. Engine knocking or pinging sounds

How to Fix P1140 2002 Nissan Sentra

  1. Diagnose the issue using a scan tool to determine the exact cause of the fault code.
  2. Inspect the intake valve timing control solenoid and related components for any signs of damage or wear.
  3. Check the wiring and connectors for any loose connections or damage.
  4. Replace the faulty intake valve timing control solenoid or repair any damaged wiring or connectors.
  5. Clear the fault code and test drive the vehicle to ensure the issue has been resolved.

Cost to Fix P1140 2002 Nissan Sentra

The cost of repairing the intake valve timing control performance issue on a 2002 Nissan Sentra can vary depending on the specific cause of the problem and the cost of parts and labor. On average, the repair cost for this issue can range from $200 to $500, including parts and labor. However, it's important to note that labor rates and diagnostic fees at auto repair shops can vary, so it's advisable to check with local shops for a more accurate estimate.

What does this mean?

Tech Notes for P1140 2002 Nissan Sentra

Since the Intake valve timing control solenoid valve uses oil flow to control timing, dirty oil can cause the valve to stuck open or close. Before replacing the valve, change engine oil and filter and reset engine code.

When is the Code Detected?

When there is a gap between angle of target and phase-control angle degree, the valve will stop working and the ECM will trigger the P1140 code.

Need more information about the P1140 2002 Nissan Sentra code?

Need more information on how to fix the P1140 2002 Nissan Sentra code? Get Access to Factory Service Manuals

Need Help with the Code?

Get the P1140 2002 Nissan Sentra code diagnosed by a professional: Find a repair shop in your area

About the author: William Orellana is a Master Mechanic and Mechanical Engineer with over 30 years of experience diagnosing and repairing vehicles. Learn more about his background.

Frequently Asked Questions about P1140 2002 Nissan Sentra Code

1. What are the common symptoms of OBDII code P1140 in a 2002 Nissan Sentra?

- Common symptoms include rough idling, decreased engine performance, and potential stalling issues.

2. What does the OBDII code P1140 on a 2002 Nissan Sentra indicate?

- OBDII code P1140 signifies an issue with the Intake Valve Timing Control on Bank 1 of the vehicle's engine.

3. What are the possible causes of OBDII code P1140 in a 2002 Nissan Sentra?

- Causes can include a faulty Intake Valve Timing Control Solenoid, damaged wiring, low engine oil levels, or issues with the timing chain.

4. How can I diagnose the OBDII code P1140 on my 2002 Nissan Sentra?

- Diagnosing this code typically involves checking the Intake Valve Timing Control Solenoid, inspecting wiring connections, and verifying oil levels.

5. Can I continue driving my 2002 Nissan Sentra with OBDII code P1140?

- It is not recommended to drive the vehicle with this code active, as it can lead to further engine damage if left unresolved.

6. Is it safe to reset the OBDII code P1140 in my 2002 Nissan Sentra without addressing the underlying issue?

- Resetting the code without fixing the root cause can temporarily clear the warning light but will not solve the underlying problem.

7. What are the repair options for OBDII code P1140 in a 2002 Nissan Sentra?

- Repair options may include replacing the Intake Valve Timing Control Solenoid, repairing damaged wiring, checking and replenishing engine oil, or addressing timing chain issues.

8. How much does it cost to fix OBDII code P1140 in a 2002 Nissan Sentra?

- The cost of repairs can vary based on the specific cause of the issue, but it is recommended to consult a mechanic for a proper diagnosis and cost estimate.

9. Can a DIY enthusiast fix OBDII code P1140 in a 2002 Nissan Sentra?

- Depending on the level of expertise, some DIY enthusiasts may be able to address simpler causes like checking wiring connections, but more complex issues may require professional assistance.

10. How can I prevent OBDII code P1140 from occurring in my 2002 Nissan Sentra in the future?

- Regular maintenance, timely oil changes, and addressing any engine performance issues promptly can help prevent the recurrence of OBDII code P1140.

Discuss the causes and fixes for P1140 2002 Nissan Sentra OBDII Code

Submit a New Comment

  • Have a problem can't I get past, 02 Sentra p1140 variable valve timing solenoid I replaced with new part and still have same code could I have a bad relay or where does the the part get power from I know in an article I seen here says ecm but would there be a relay, also where r the other sensors located meaning cam shaft sen.and crankshaft sen,one more question is valve position sensor same as any above mentioned sen.

    Reply to Comment

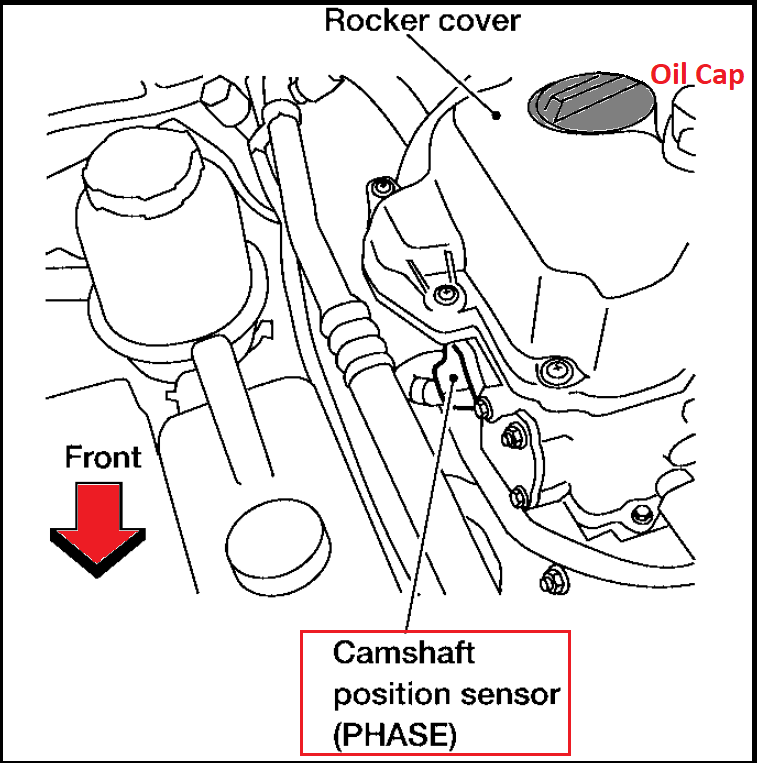

  • Sometimes the problem is the Camshaft Position Sensor that is no properly reading the camshaft position. The sensor is in front of the engine for the 1.8L engine


    Click here to enlarge image
