P0106 2009 Hyundai Sonata Code - Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem
Quick Answer
The P0106 diagnostic trouble code (DTC) for a 2009 Hyundai Sonata indicates a potential issue with the Manifold Absolute Pressure (MAP) sensor or Barometric Pressure (BARO) sensor circuit. Common causes include Faulty MAP sensor, Faulty BARO sensor, Wiring/connectors issues. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P0106 2009 Hyundai Sonata indicates Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem.
- Common causes
- Common causes include Faulty MAP sensor, Faulty BARO sensor, Wiring/connectors issues.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Fix Your Car Smarter
Try the New AutoCodes App!
Get complete OBDII diagnostics, repair solutions, and cost estimates, plus AI chat support on demand.
Code P0106 2009 Hyundai Sonata Description
The P0106 diagnostic trouble code (DTC) for a 2009 Hyundai Sonata indicates a potential issue with the Manifold Absolute Pressure (MAP) sensor or Barometric Pressure (BARO) sensor circuit. The MAP sensor measures the pressure in the intake manifold, providing crucial data to the engine control module (ECM) for fuel delivery and ignition timing. The BARO sensor, on the other hand, helps the ECM adjust the fuel mixture based on changes in altitude or atmospheric pressure. When the ECM detects that the input from the MAP/BARO sensor circuit is outside of the expected range or performance parameters, it triggers the P0106 code.
Common Causes of P0106 2009 Hyundai Sonata
- Faulty MAP sensor
- Faulty BARO sensor
- Wiring/connectors issues
- Vacuum leak in the intake system
- Malfunctioning EGR valve
Symptoms of P0106 2009 Hyundai Sonata
- Reduced fuel efficiency
- Rough idling or uneven engine performance
- Hesitation or stumbling during acceleration
- Engine stalling
- Illumination of the Check Engine Light
How to Fix P0106 2009 Hyundai Sonata
- Begin by using a diagnostic scan tool to confirm the presence of the P0106 code and identify the specific cause.
- Inspect the MAP and BARO sensors, as well as their wiring and connectors, for any signs of damage or corrosion. Replace any faulty components.
- Check for vacuum leaks in the intake system and repair as necessary. This may involve replacing hoses or gaskets.
- Test the EGR valve functionality and clean or replace it if needed.
- Clear the DTC and test drive the vehicle to ensure the issue has been resolved.
Cost to Fix P0106 2009 Hyundai Sonata
The typical repair costs for addressing a P0106 code in a 2009 Hyundai Sonata can vary depending on the specific cause of the issue. Replacement of a faulty MAP or BARO sensor, along with labor costs, could range from $100 to $300. Additional costs may apply if there are wiring or connector issues that need to be addressed. It's advisable to consult with a trusted mechanic or auto repair shop for a more accurate estimate based on the specific diagnosis and repair needs of your vehicle. Keep in mind that labor rates can vary based on location and service provider.
Tech Notes for P0106 2009 Hyundai Sonata
Need more information about the P0106 2009 Hyundai Sonata code?
Need more information on how to fix the P0106 2009 Hyundai Sonata code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0106 2009 Hyundai Sonata code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P0106 2009 Hyundai Sonata Code
1. What are the common symptoms of OBDII code P0106 in a 2009 Hyundai Sonata?
- Common symptoms include reduced engine performance, rough idling, stalling, and increased fuel consumption.
2. What can cause the OBDII code P0106 to trigger in a 2009 Hyundai Sonata?
- The code may be triggered by a faulty Manifold Absolute Pressure (MAP) sensor, damaged wiring, vacuum leaks, or a malfunctioning Engine Control Module (ECM).
3. How can I diagnose the cause of OBDII code P0106 in my 2009 Hyundai Sonata?
- You can use a diagnostic scan tool to read the code and check the MAP sensor's voltage output, inspect the sensor and wiring for damage, and perform a smoke test to detect vacuum leaks.
4. Can I drive my 2009 Hyundai Sonata with an active P0106 code?
- It is not recommended to drive your Sonata with an active P0106 code as it can lead to engine performance issues and potential further damage.
5. What is the repair process for fixing OBDII code P0106 in a 2009 Hyundai Sonata?
- The repair process typically involves replacing the faulty MAP sensor, repairing damaged wiring, fixing vacuum leaks, or reprogramming the ECM if necessary.
6. Are there any DIY tips for addressing OBDII code P0106 in my 2009 Hyundai Sonata?
- DIY tips include checking for loose or damaged connections, cleaning the MAP sensor, and ensuring all vacuum lines are intact and properly connected.
7. How much does it cost to repair OBDII code P0106 in a 2009 Hyundai Sonata?
- The cost of repair can vary depending on the specific issue causing the code, but it typically ranges from $100 to $300 for parts and labor.
8. Can a dirty air filter cause OBDII code P0106 in a 2009 Hyundai Sonata?
- A dirty air filter can restrict airflow and affect the MAP sensor readings, potentially leading to the triggering of code P0106.
9. Will resetting the OBDII code P0106 in my 2009 Hyundai Sonata make it go away permanently?
- Resetting the code may temporarily clear it, but if the underlying issue is not fixed, the code is likely to reappear after driving the car for a certain distance.
10. Is it safe to ignore OBDII code P0106 in my 2009 Hyundai Sonata?
- Ignoring the code can lead to reduced fuel efficiency, engine performance issues, and potential long-term damage, so it is best to address the underlying problem promptly.
Discuss the causes and fixes for P0106 2009 Hyundai Sonata OBDII Code
-
My battery on my 2009 Hyundai Sonata 2.2L 4 cylinder needed a jump. The jump was handled and battery, started and charging system test were performed. The test were normal with the battery excepted as it showed it needed replaced. I drove to my next destination and again the car would not start. This time the person jumping the battery put the cables on wrong. The battery terminals and cables smoked profusely and were left on for a good minute. The car continued to run and now the engine light came on. I have since replaced the battery and had a computer read out for the engine light which now shows P0106 MAP Manifold Absolute Pressure sensor. I will have to price these and get a mechanic to replace it. I am hoping this is all that it needs. My radio, a/c and everything is operating with no changes.
-
This vehicle has been infamous for this problem. Any loss of battery power or disconnection of terminals that connect on the rear of the air filter box will result in P0106 MAP sensor code. I fixed the problem by just continue to drive for about 40-60 miles, and computer will resolve code it self. I have had this problem in the past and took unnecessary steps to resolve, when patience was the necessary action. In past I purchased new MAP sensor (non returnable item - electrical component), without resolve. So be patience, and if computer does not reset check engine light after 70 miles, I would take into dealer to have code reset and adaptive configurations looked at. Diagnostic fee at Hyundai dealers usually runs about $100.00, if car is out of warranty. Dealer will put diagnostic fee towards repairs, if needed.
-
I have had my check engine light on for about 4 mons now and I just bought a MAP sensor and was wandering where it when on the vehicle
-
What year and engine size is your Sonata? Here is the location for the 2009 with 2.4L engine
-

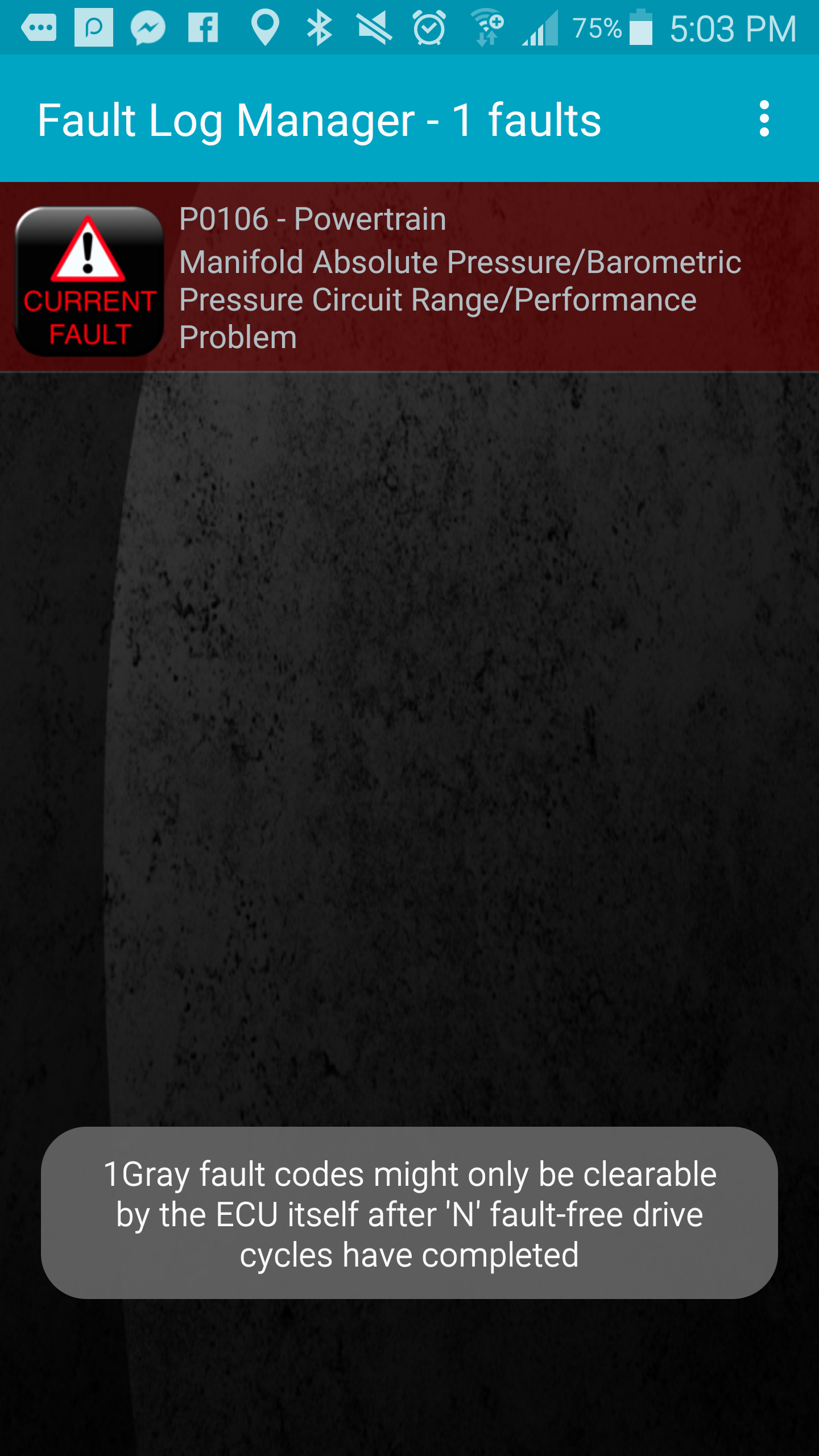

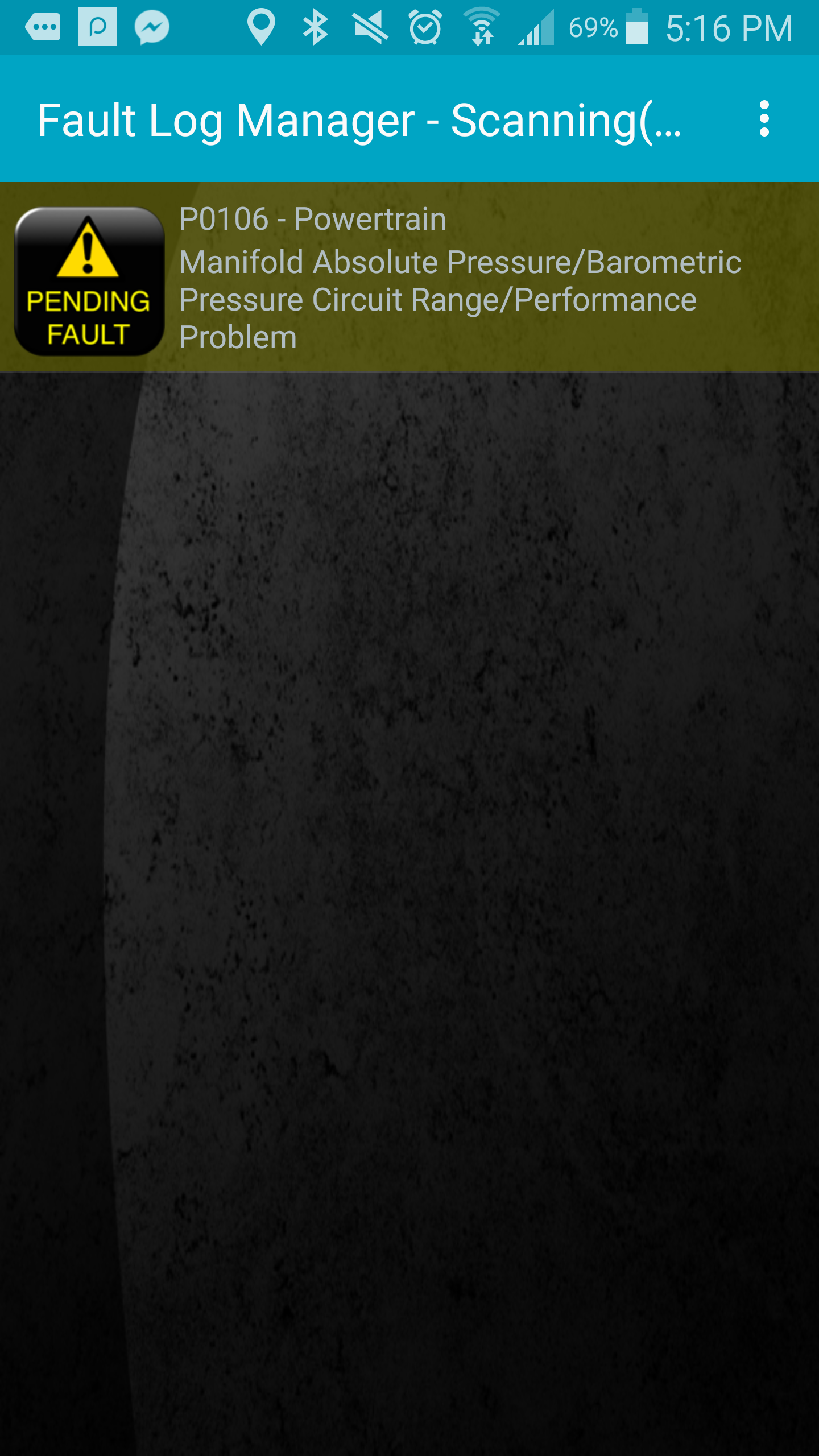

I just got the P0106 code. I have a 2010 Hyundai Sonata V4. I bought a new MAP sensor. I disconnected the battery and swapped out the bad MAP. Installed a new MAP Sensor. Less than a couple miles later, the check engine light came on. I cleared the code with my TorquePro but the light keeps turning back on but as a "grey code." Im confused.
Click here to enlarge image
Click here to enlarge image -
If the engine light came back ON, then the problem may have not be repair. Try driving your vehicle more.
-
Here is the story. My wifes battery died. So I did a trickle charge. Light came on. Took the car to AutoZone and had the codes read. Disconnected the battery and replaced with new MAP Sensor. Light came back on. With that said, did I buy a new MAP Sensor for no reason?
-
Dang. Ok. Ill drive it around for a couple days to see what happens. Thank you so much for the extremely quick reply. You have a good day.
-
Good morning. The SES light turned off. I guess it needed to go through a drive cycle. Interesting. Lol
Click here to enlarge image -
Hey, how did it work out for you? I've been driving for two days with the light still on for this code after getting jumpstarted by AAA. My car takes much longer to start now too after I turn the key.
-
Well I replace the map sensor with a new one and the light had turned on for a while. But after driving for about 20 to 50 miles the light turned off and I haven't had a problem ever since.
-
I work at a Hyundai dealership. most of the time with the 4 cylinder throwing a p0106, weve found vehicle has oil contamination in intake manifold from a defective valve cover assembly. pvc baffling defective internally causing oil to be sucked into intake manifold. replace valve cover assembly and will be fixed.
