P0014 KIA Code - 'B' Camshaft Position Timing Over-Advanced Or System Performance Bank 1
Quick Answer
The P0014 code for KIA vehicles indicates that the 'B' camshaft position timing is over-advanced or the system performance is not operating within the specified parameters on Bank 1. Common causes include Faulty camshaft position sensor, Timing chain or belt issues, Oil flow problems to the camshaft phasers. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P0014 KIA indicates 'B' Camshaft Position Timing Over-Advanced Or System Performance Bank 1.
- Common causes
- Common causes include Faulty camshaft position sensor, Timing chain or belt issues, Oil flow problems to the camshaft phasers.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Fix Your Car Smarter
Try the New AutoCodes App!
Get complete OBDII diagnostics, repair solutions, and cost estimates, plus AI chat support on demand.
Code P0014 KIA Description
The P0014 code for KIA vehicles indicates that the 'B' camshaft position timing is over-advanced or the system performance is not operating within the specified parameters on Bank 1. This means that there is a timing issue with the camshaft position, which can lead to poor engine performance, fuel economy, and emissions. The camshaft is responsible for controlling the opening and closing of the engine's valves, and if the timing is off, it can cause misfires, poor acceleration, and rough idling. If not addressed, this issue can potentially cause damage to the engine over time.
Common Causes of P0014 KIA
- Faulty camshaft position sensor
- Timing chain or belt issues
- Oil flow problems to the camshaft phasers
- Engine control module (ECM) software issues
- Worn out camshaft phasers
Symptoms of P0014 KIA
- Check Engine Light is illuminated
- Rough idling or stalling
- Decreased fuel efficiency
- Engine hesitation or lack of power
- Engine misfires
How to Fix P0014 KIA
- Diagnose the issue using a scan tool to verify the P0014 code and check camshaft position sensor readings.
- Inspect the timing chain or belt for any wear or damage and replace if necessary.
- Check the oil flow to the camshaft phasers and clean or replace any clogged components.
- Update the engine control module software to the latest version to address any programming issues.
- Replace the camshaft phasers if they are worn or damaged.
Cost to Fix P0014 KIA
The typical repair costs for addressing a P0014 code on a KIA vehicle can range from $200 to $800, depending on the specific cause of the issue and the parts/labour involved. It's important to note that diagnosis time and labour rates at auto repair shops can vary, so it's recommended to check with local shops for a more accurate estimate. Additionally, the cost may be higher if the vehicle is taken to a dealership or if specialized tools or equipment are required for the repair.
Tech Notes for P0014 KIA
Kia Rio (JB)
Kia Soul (AM)
Kia Optima (MG)
Kia Rondo (UN)
Kia Forte (TD)
Kia Spectra (LD)
Kia Sportage (KM)
Kia Optima (MG)
Kia Sedona (VQ)
Kia Amanti (GH)
Kia Borrego (HM)
Kia Sedona (VQ)
Kia Sorento (BL)
Kia Borrego (HM)

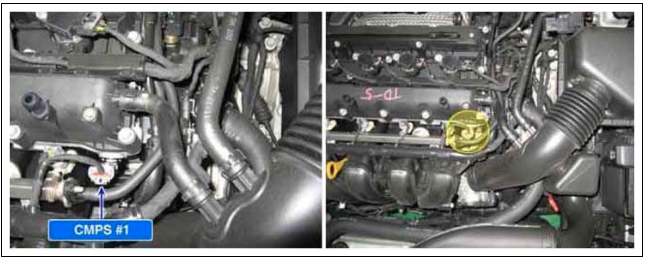

The bulletin provides information on how to inspect and diagnose problems related to the Oil Control Valve (OCV) used in Constant Variable Valve Timing (CVVT), if at any time the OCV is suspected as the caused of rough idling, poor acceleration, camshaft timing misalignment-related trouble codes, misfire-related trouble codes.
Factory Service Bulletin: Kia Constant Variable Valve Timing Oil Control Valve Inspection OBDII Code P0014
Need more information about the P0014 KIA code?
Need more information on how to fix the P0014 KIA code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0014 KIA code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P0014 KIA Code
1. What are the common symptoms of OBDII code P0014 in a KIA vehicle?
Symptoms may include rough idling, reduced engine performance, stalling, and the illumination of the check engine light.
2. What can cause the OBDII code P0014 in a KIA vehicle?
Possible causes include issues with the camshaft position sensor, camshaft phaser, timing chain tensioner, oil flow problems, or engine timing being off.
3. How can I diagnose the cause of OBDII code P0014 in my KIA?
Diagnosis typically involves checking the camshaft position sensor, inspecting the timing chain and phaser, verifying oil pressure, and ensuring proper engine timing.
4. Can I continue driving my KIA with OBDII code P0014 present?
It is not recommended to drive the vehicle with this code as it can lead to further engine damage and potential safety hazards.
5. How can I repair OBDII code P0014 in my KIA?
Repair methods may include replacing the camshaft position sensor, addressing timing chain or phaser issues, resolving oil flow problems, or adjusting engine timing.
6. Is it safe to reset the check engine light after fixing OBDII code P0014 in my KIA?
Yes, once the issue is resolved, you can reset the check engine light using an OBDII scanner to clear the trouble code.
7. Will OBDII code P0014 cause permanent damage to my KIA's engine?
Continued driving with this code can potentially cause damage to the engine, especially if the underlying issue is not addressed promptly.
8. How long does it typically take to repair OBDII code P0014 in a KIA?
The repair time can vary depending on the specific cause of the code, but it may take a few hours to a day for diagnosis and repairs to be completed.
9. Can a DIY enthusiast fix OBDII code P0014 in a KIA?
While some aspects of the repair may be DIY-friendly, diagnosing and fixing the root cause of the code may require specialized tools and expertise, so professional help is recommended.
10. Is OBDII code P0014 a common issue in KIA vehicles?
Yes, OBDII code P0014 related to 'B' Camshaft Position Timing Over-Advanced Or System Performance Bank 1 can be a common issue in certain KIA models, especially those with variable valve timing systems.
Discuss the causes and fixes for P0014 KIA OBDII Code
-
We have updated some of the information above. Please let us know what else you need.
-
The description above first says exhaust camshaft is driven by the chain, then later, it says the intake camshaft is driven by the belt - which is it, chain or belt? Secondly, does the code differentiate between a failure of the intake side OCV and the exhaust side OCV? The description alludes to the idea that there is no OCV solenoid driving the exhaust side cam, but only that there is a intake side OCV. However, there are OCV solenoids to both the intake and exhaust cams. Which gets checked/replaced pursuant to code P0014?
-
2011 Sorento EX, 3.5L. Took apart and fixed Saturday. Chain drive. Very difficult getting parts on short notice. Also found that Kia Service Manual shows different resistance specs for solenoids than listed in Service Bulletin; manual shows specs of 9.4 - 10.4 ohms for both solenoids for this vehicle. Thx for responding so quickly.
-
My 2011 KIa Rondo was just diagnosed with this problem after error code P0014 & P0011 came up at the shop. I had just purchased it in July with 79,000km or approx 48,000 miles. Major disappointment. Had put about 600 km since then, as was going to use it as my winter vehicle, but decided to still use my 2006 chrysler town & country for now & get info on my problem, so it's put away for the winter. Will take the battery out. Parts quoted are very expensive. It seems to be a problem with Kia. No service bulletin came up in Canada for this, just the Charcoal canister fix but it seems to coming up in later models also....Thanks for the current info on your site.
-
You don't need to adjust the timing, there is a valve that adjusts the valve and sometimes that valve gets stuck. You may need to replace the Valve Timing Control (VTC).
-
What model and year is your vehicle? Every vehicle situation is different, that's why we can't give you an exact solution of your problem.
I recommend start by changing the engine oil and filter. Make sure you use the factory recommend engine oil weight for you model year. -
I have a kia sorento xm 2013.. the P0011 code keeps coming, ive also check the harness and it all in good condition.. ive already change the ocv valve, engine oil. Oil filter and timing chain kit... but it wont solve this problem. So what will solve this problem? Anyone?
-
Let me check if there are any extra information or bulletin for your problem, what is the engine size of your Sorento 2.4L or 3.5L?
-
2013 kia forte ex check engine light on with code p0014 changes vvt solenoid clear the ecm and the check engine lights back on. No loss of power or anything either.
-
Unfortunate I haven't had that problem before, but according to a national database of repairs for your model and year, other than the VVT Control Solenoid, the other component that will set the P0014 code is the Camshaft Position Sensor.
-
I have a 2010 Kia Forte and the engine light just came on, I went by auto zone and this is the code and discription of it: POO14 Exhaust Canshaft Position Timing-Over-Advanced (Bank1). What i am wondering is will it do any harm to my vehicle if I drive it until I can get it fixed. Its about a 50 miles round trip to my job
-
I HAVE A 2016 kia sorento it shut off on me and it crunk right back up check engine light came on and it does not have much power when mashing gas and I can hear a little noise that I haevnt been hearing took by auto zone code pulled up po14 can u please tell me what that means and is it something major dropped it off to a mechanic now he saying it wont crank when he went to get in it to check it out
-
There are some test that needs to be done to determine exactly what the problem is. The first step is to check the engine oil level and condition. If the engine oil is OK, then the next step is to check or replace the Valve Timing Control (VTC).
-
The first step is to check the engine oil level and condition. If the engine oil is OK and have no other symptoms, then it's safe to drive for now.
-
I have a 2018 Kia Forte and I didn’t change the oil for a while and the engine light came on I just got an oil change and diagnosed it with the odb machine and the code was p0014 and it read as the solenoid could it possibly be because of the dirty oil the car runs fine
-
Yes, the dirty oil could set the code. Since there are no other symptoms, just clear the code.
-
I test drove a 2011 2.5 L cylinder engine Kia Sportage (149,000k miles) with both P0011 and P0014 error codes (intake and exhaust). I had my mechanic check the oil and he said it was fine. There are no bad sounds, and the car drives fine. But I’m not sure what it would take to fix these codes. The air filter does need to be changed, I don’t know if that matters.
-
You may have to replace the Valve Timing Control (VTC) for both sides. If the engine oil was just replaced, you could try clearing the code first. It may take some time for the clean oil getting to the Valve Timing Control valves.
-
I recently had my check engine light come on in my 2014 Kia Forte ex. I had around 700 miles left until my next oil change but went ahead and got it changed anyway. Afterwards the check engine light went away. Now a month later and it is back on with the low oil light flickering on and off occasionally. I have about 2200 miles left until my next oil change but when I went to check the oil level it was completely dry. I was told I need to replace my whole engine. Would anyone have any suggestions as to what it may be? Its not leaking oil but I think the engine may be burning the oil. Both times I have got it looked at it has ran the same code of p0014
-
hello I have a kia sorento 2016 3.3 I put the head gasket and it gave me a code p0014
-
Any other symptoms? You may not have installed the cylinder hear properly, and the camshaft position sensor is not reading the correct camshaft position.
-
my 2012 kia optima shut off on me and it wont start it just makes clicking noise new oil was added i was told it was p0014
-
For the P0014 the most probable cause of the problem is the Variable Valve Timing Control Solenoid also known as CVVT Oil Control Valve
